Sand gravel Transport

50 Cubic Meters Dump Semi Trailer

3 axles U type Tipper/Dump Semi Trailer With HYVA system :Widely used to transport sand, stone, coal and other solid building materials or industrial raw materials. Rear dump semi-trailers are designed to make unloading easier. After the back of the trailer is locked, sand can be loaded. When it arrives at the destination, the front side of the semi-trailer can be raised, which makes the goods drop from the back. The bucket of the trailer requires a thicker steel plate, because the goods are often hard materials, and the steel plate can prevent the cargo from damaging the trailer.

STARWAY VEHICLE has invested a lot of time, energy and resources in the development of our 40-foot end dump trailers to ensure that they provide the highest efficiency, reliability and meet industry standards. Our focus on innovation and quality means that each trailer is designed for optimal performance, making it suitable for a variety of demanding transportation tasks. By using high-strength, durable materials, we ensure our end-dump trailers can handle heavy loads and withstand the challenges of harsh working environments.

Our 40-foot end-dump trailers are designed for quick unloading and provide excellent efficiency when unloading bulk materials such as gravel, sand and construction debris. Due to their ability to handle considerable loads, they are ideal for industries such as construction, mining and waste management. Hydraulic lifting system ensures smooth operation, reduces unloading time and increases productivity.

However, in order to maintain safety during operations, it is vital that a careful and experienced operator is responsible for unloading. Mismanagement or improper handling can lead to accidents or potential hazards, especially when handling heavy loads. Therefore, training and compliance with safety protocols are critical to ensuring the safe and effective use of these trailers. Proper handling not only protects the operator and those around them, but also helps to extend the life of the trailer, keeping it in peak performance for a long time.

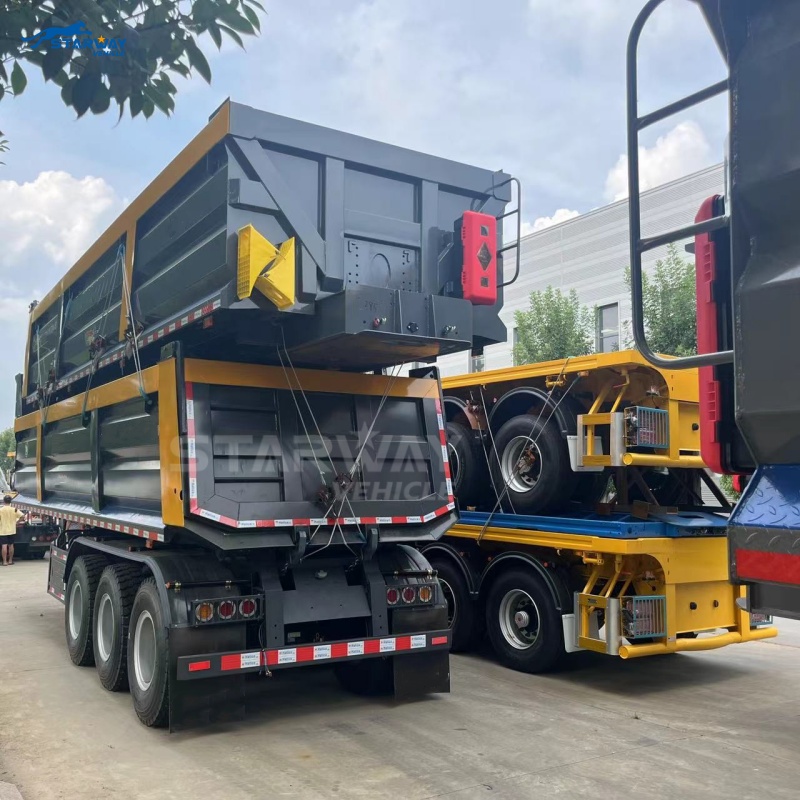

50 Cubic Meters Dump Semi Trailer

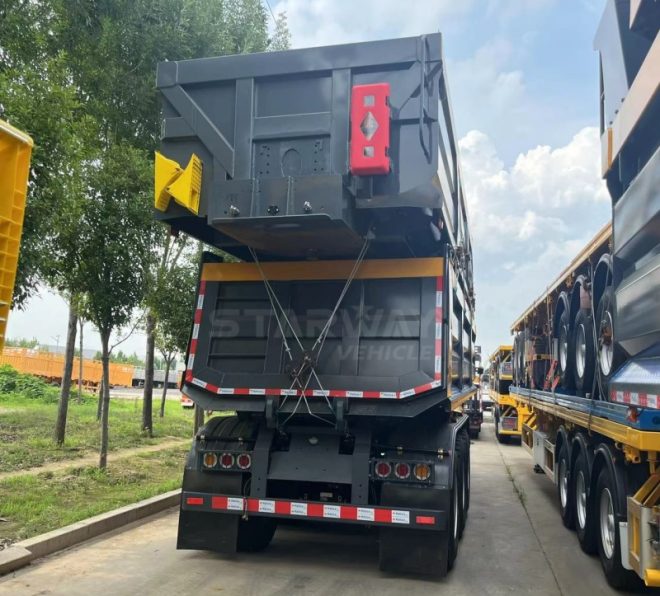

50 Cubic Meters Dump Semi Trailer

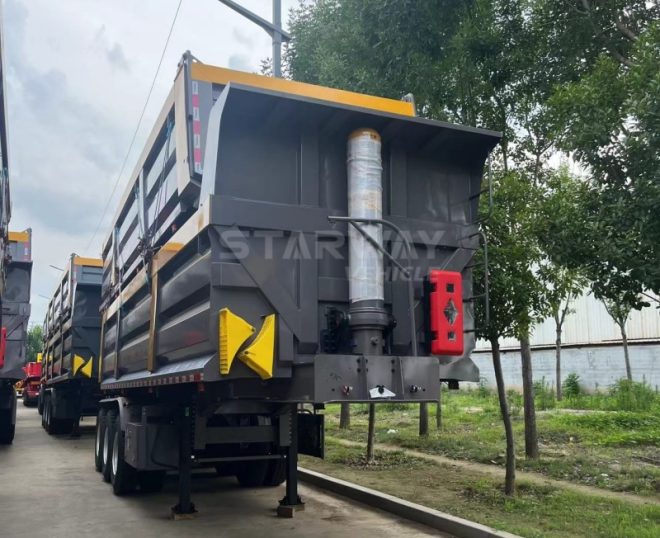

50 Cubic Meters Dump Semi Trailer

The specification of starway  vehicle dumper trailer :

Brand
Starway Vehicle
Application
Coal/Mine/Stand/Stone Loading
Dump Style
Rear Dump
Loading Capacity
30T-100T
Axle
2/3/4*13/16T
FUWA/BPW/STARWAY VEHICLE
Length
11000mm
Width
2500mm
Height
2800mm
Cylinder
HYVA (model is according to the length of cargo box)
Floor Plate Thickness
5mm
Cargo Thickness
4mm
Cargo Style
Rectanglular/Round
Front Axle Lifting
Available




Main Beam
Material Q345/T700
Height: 500mm
Upper Plate: 14mm
Middle Plate: 8mm
Lower Plate: 16mm

Tire
11.00R20/12R222.5*8/12/16 pieces
Linglong/Triangle/Double-Coin/Bridgestone
Rim
8.0/9.0*8/12/16 pieces, steel/aluminum
Suspension
Mechanical/Airbag
Leaf Spring
90mm*13/16mm*10 pieces
Landing Gear
28T two-speed, JOST
King Pin
#50(2″)/#90(3.5″), JOST/Other Brand
Tool Box
Steel/aluminum

Here you have the standard specifications for the Starway vehicle. Please contact us if any changes are needed.
