The 40-foot sidewall trailer is a versatile shipping solution suitable for transporting everything from boxed goods to bulk cargo. Its unique design feature is that the side panels are easy to open, making the loading and unloading process more efficient and convenient. This feature is especially useful for industries that require quick and easy access to goods during transportation.
Sidewall flatbed trailers, like those used by transport companies in the logistics industry, are popular for their flexibility and functional design. The open sides of the trailer allow for loading and unloading from multiple angles, which is ideal when transporting oddly shaped or oversized items.
Starway Vehicle’s 40-foot sidewall cargo trailers are known for their sturdy construction, ensuring reliability and durability during heavy-duty use. To meet a variety of transportation needs, Starway Vehicle offers 40-foot sidewall trailers in a variety of configurations, each suitable for handling a specific type of cargo, whether it’s bulk materials, equipment or boxed cargo. With its rugged construction and customizable options, the 40-foot sidewall trailer is a trusted choice for businesses looking for reliable and efficient transportation solutions.

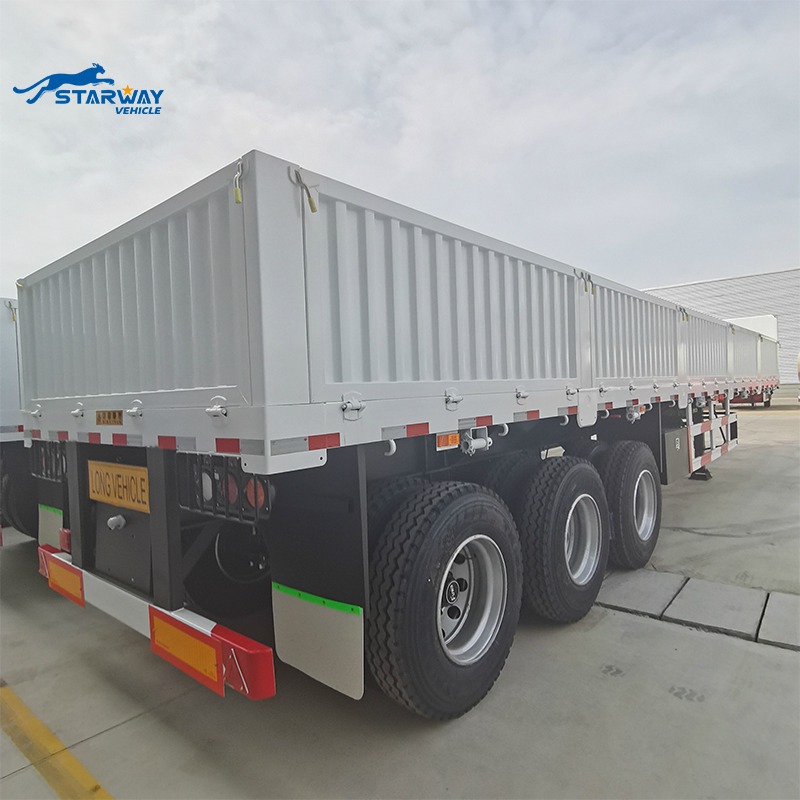

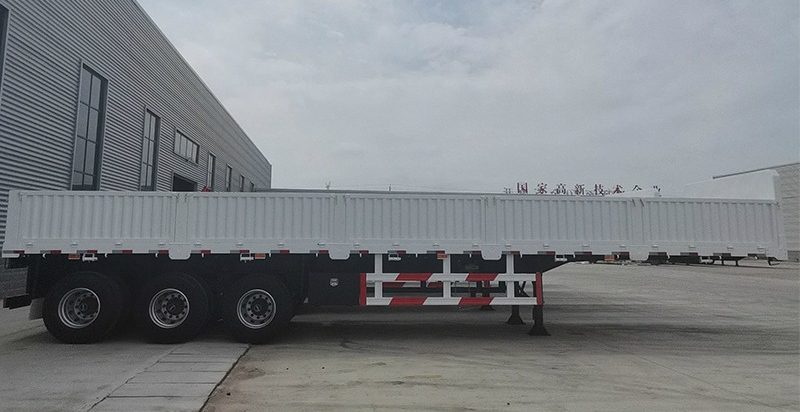

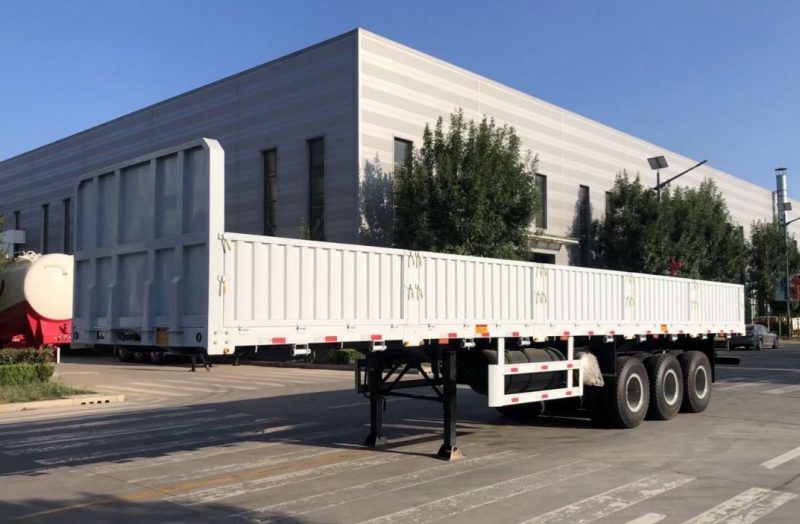

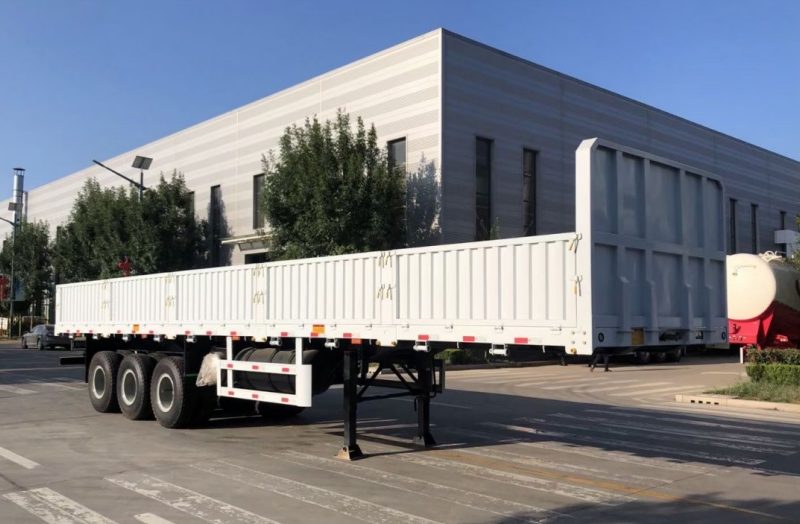

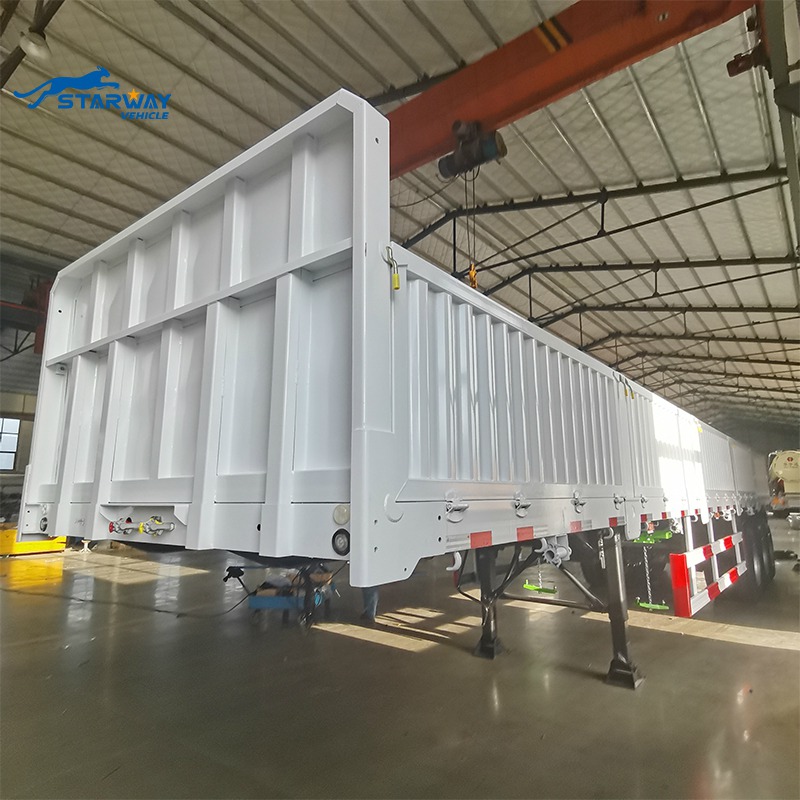

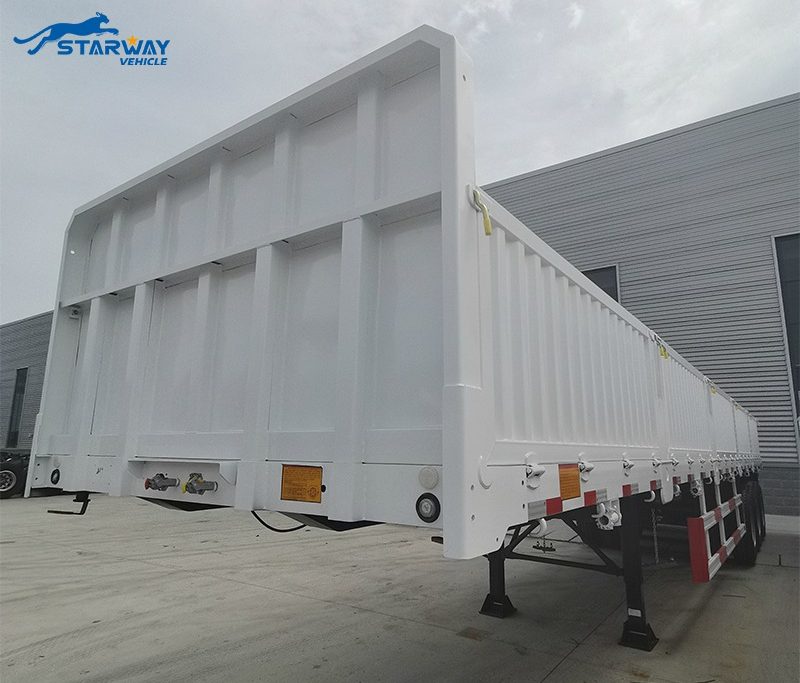

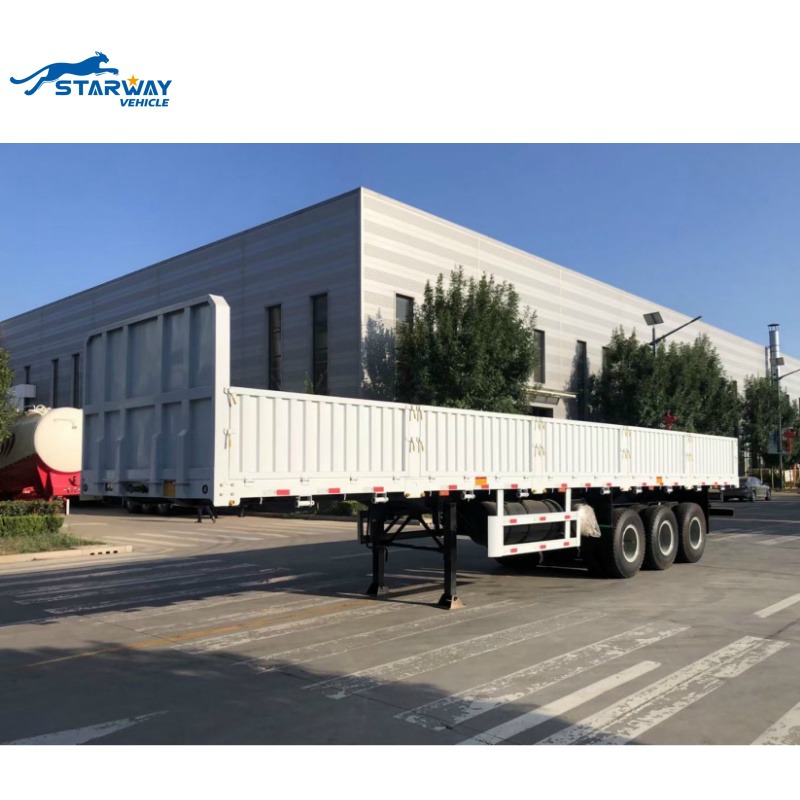

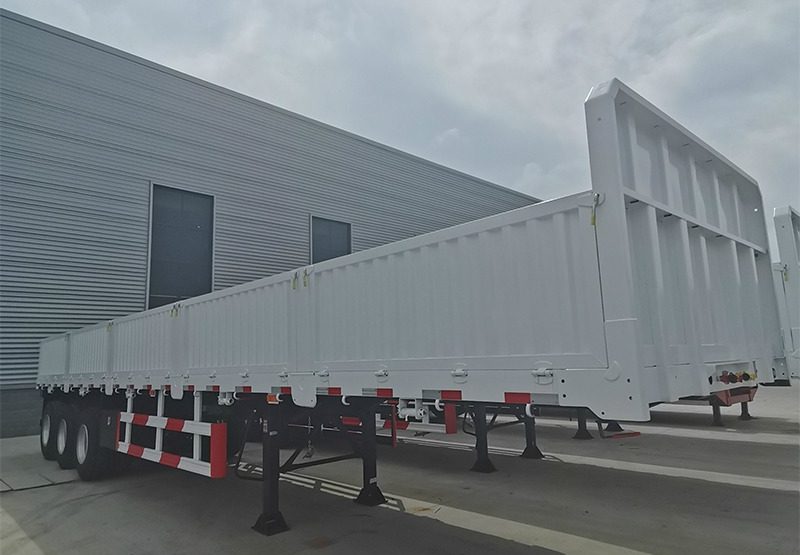

Tri-Axle Sidewall Semi Trailer
Tri-Axle Sidewall Semi Trailer
Tri-Axle Sidewall Semi Trailer
Tri-Axle Sidewall Semi Trailer
The specification of Starway vehicle standard sidewall semi trailer :
Brand : Starway Vehicle
Loading Capacity : 30-80 T
Gooseneck Type : Optional
Dimension (L*W*H) : 13000*2550*600-1700mm
Main Beam:Material : Q345/T700; “H” beam height: 500mm; Top/middle/bottom: 12/8/14(mm)
Through Beam : #10 channel steel
Side Beam : #16 channel steel
Axles : BPW/FUWA/STARWAY VEHICLE/ 13 ton * 3
Tire : Triangle/Linglong/Double-Coin/Bridgestone/Other Brand 12R22.5x 12 + one spare tire
Suspension : Mechanical suspension or air suspension(brand optional)
Leaf Spring : Leaf spring 10pcs*90*13mm or air bag
Landing Gear : JOST or other brand two-speed, landing gear 28T
Paint : Powder spraying and coating
Color : Per customer’s requirement
Electrical System : 24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame
Braking System : Dual line pneumatic brake, SAE hose and connector,with WABCO ABS
Accessories : Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
