In modern logistics, container transportation demands speed, safety, and reliability. The CIMC skeleton trailer is designed specifically to meet these needs, offering a lightweight yet high-strength frame, efficient loading capability, and outstanding road performance.

The skeleton trailer’s frame design eliminates unnecessary weight while maintaining the strength required to carry heavy containerized loads. This design also makes loading and unloading faster, reducing turnaround times in busy ports and warehouses.

The main beam is manufactured from high-grade steel and engineered to handle high axle loads without warping. Advanced automatic welding technology ensures consistent structural strength, even under the stress of daily operations.

CIMC applies a professional multi-layer coating process to every skeleton trailer, protecting it from rust and chemical damage. This makes it suitable for operation in coastal shipping hubs, industrial zones, and tropical climates.

The lighter frame means lower fuel consumption, helping transport operators reduce operating expenses. Combined with the trailer’s long lifespan, it provides a significant cost advantage over time.

Whether you need a trailer for a single 40ft container or a combination of 20ft units, CIMC offers flexible configurations to suit your operational requirements. Optional features such as twist-lock arrangements and reinforced beams can be added for extra durability.

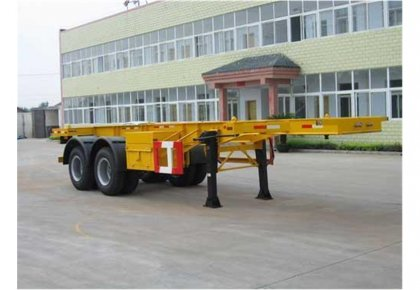

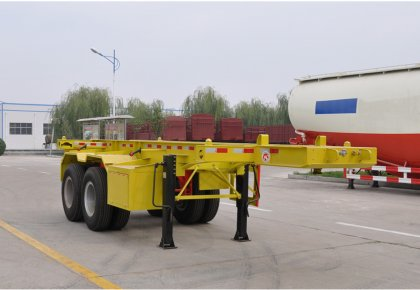

CIMC 2Axle 20Ft Skeleton Trailer

Specifications of skeleton trailer

Overall Dimension

Length(mm) :7000

Width(mm) :2490

Height(mm):1580

Tare Weight(kg) :3850

Quantity of Axle :2

Wheelbase(mm) :4000+1305

Wheel Track(mm):1840/1840

Rear Overhang(mm):1015

Main Frame:Height: 500mm , Upper Flange thickness: 12mm; Under Flange thickness: 14mm; Ventral Flange thickness: 6mm

Axle:13T * 2 pcs

Landing Gear:28T capacity, gear outside.

Leaf Spring :10 leaves

Tyre :12R22.5 – 8pcs
