Low-bed semi-trailers are mainly used to transport heavy and oversized loads, such as tractors, buses, special vehicles, and even large equipment such as rail vehicles, mining machinery, and agricultural machinery (such as excavators, loaders, cranes). These trailers are particularly suitable for transporting tall and bulky items, offering excellent stability and safety due to their low center of gravity.

Low-bed semi-trailers, such as those used by Starway vehicle to transport containers with frame trailers, are better suited for transporting tall cargo than flat-bed semi-trailers. Their lower height makes it easier for them to pass overhead obstacles, making them ideal for such purposes.

When loading machinery onto a low bed semi-trailer, the process usually involves loading from the rear of the trailer. This may include moving the machine to the rear wheel rack or removing the wheels before securing the equipment to the trailer for safe transportation.

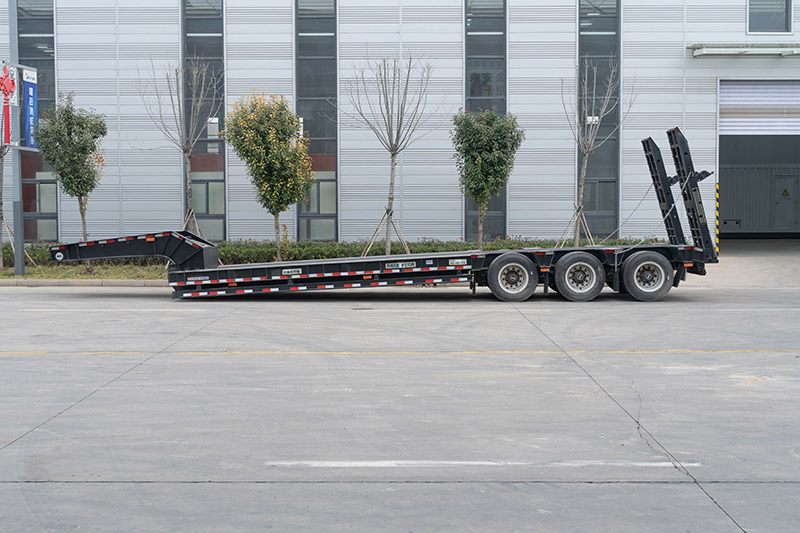

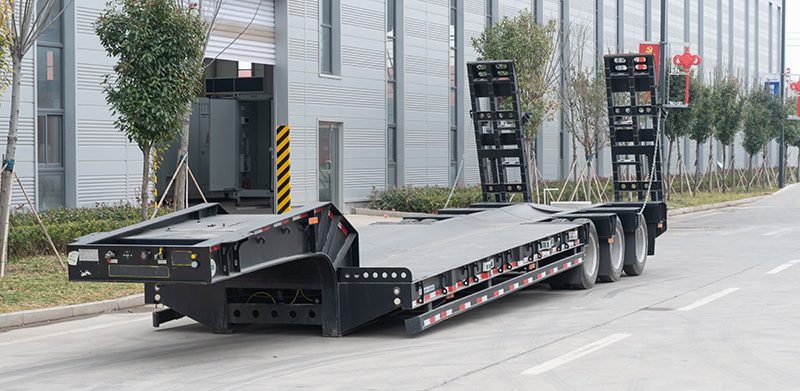

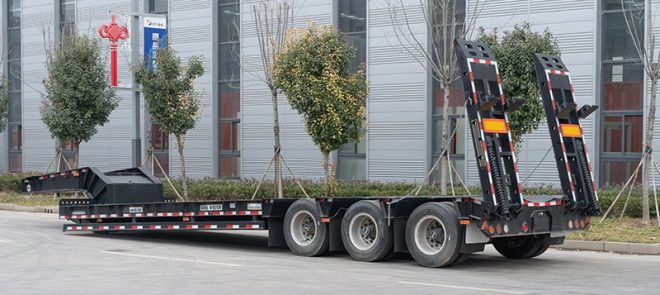

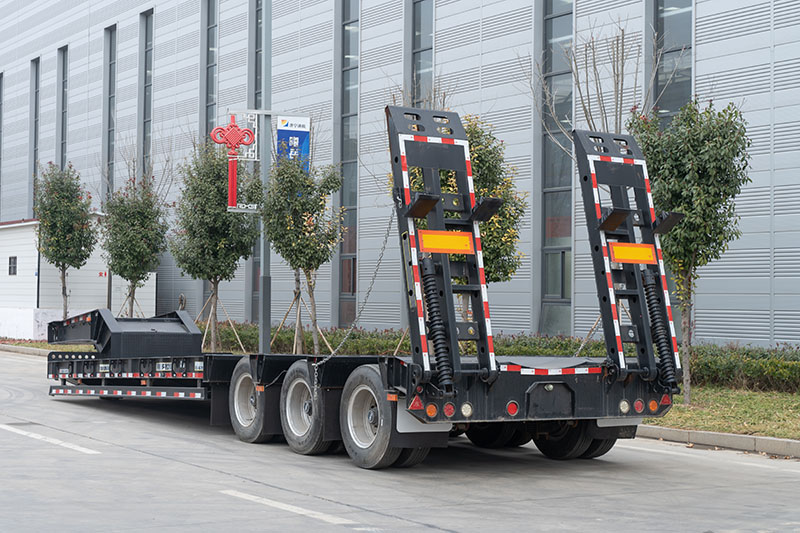

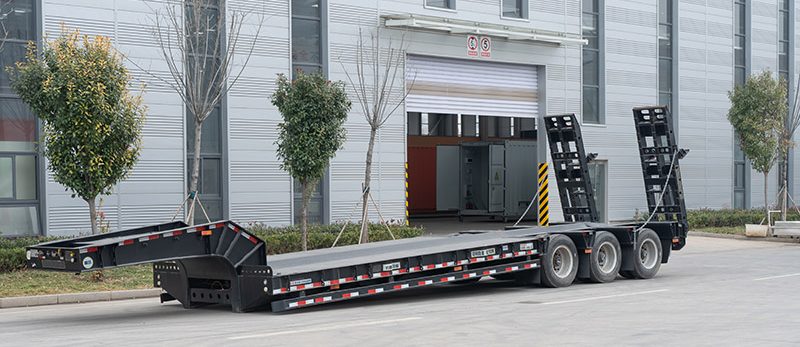

        3 Axles 80 Tons lowbed semi trailer

Key benefits of a 3-axle lowbed :

1、Safety: The low center of gravity of the low-bed semi-trailer provides relatively strong stability, making it safer when transporting heavy and oversized cargo.

2、Suitable for tall and bulky cargo: Low bed semi-trailer has a lower height and can better carry tall and bulky cargo.

3、Better transport of elevated cargo: Due to the low platform height, the low bed semi-trailer’s ability to pass under bridges and overpass structures is improved.

4、Versatility: This is suitable for transporting large and heavy equipment such as mining machinery, construction vehicles and agricultural machinery (such as excavators and cranes) which require specialized transport solutions.

The specification of starway vehicle lowbed semi trailer :

Brand : Starway Vehicle

Application : Heavy Duty Loading

Loading Capacity : 30-120 Tons

L*W*H : 13000*3000*1780mm

Ladder :Mechanical Spring/Hydraulic

Gooseneck : Available

Tire Style : Covered or Uncovered

Material :Q345/T700

Platform Thickness : 4mm

Axle : 3/4inch*13/16Ton Starway vehicle/BPW/FUWA/Other

Tire ：12R22.5/8.25r20(12/16pcs）Linglong/Triangle/Double-Coin/Bridgestone/Other

Rim : 9.00*22.5/6.5-20(12/16pcs)Steel/Aluminum

Leaf Spring :90mm*13mm*10/90mm*16mm*10pcs

Suspension System : Mechanical/Air Suspension

Ladder :Mechanical Spring/Hydraulic

King Pin :#50 or #90

Landing Gear : 28 Tons Two Speed JOST/Other Brand

Tool Box : Steel/Aluminum

Widened Parts : Available
