Rear Dump Semi trailers designed for heavy duty operations, particularly in the mining, resource extraction, quarrying and waste management industries. The structure includes a sturdy chassis, a durable box and a reliable lifting system, all designed for maximum efficiency and stability. The unloading process is powered by a PTO (Power Take Off) that supplies hydraulic oil to the lift cylinder to tilt the trailer box to a pre-designed angle. This mechanism allows the cargo to slide out smoothly, significantly improving unloading efficiency.
Side dump trailers are ideal for applications that require high traffic, heavy material handling, and quick unloading. They are commonly used in industries that transport bulk materials such as sand, gravel, coal, and mining debris, as well as construction and demolition waste. The ability to quickly unload cargo from the side reduces turnaround time, increases overall productivity and allows for faster transportation between job sites.
The chassis is made of high-strength steel, ensuring durability and the ability to withstand extreme loads in harsh operating conditions. The trailer is equipped as standard with road train grade kingpin bolts and high-strength skid plates, making it ideal for heavy-duty applications. These features provide enhanced stability and safety, especially when operating on uneven or rough terrain.
We specialize in customizing hydraulic and air valve systems to your specific needs, ensuring seamless integration with any truck or equipment. Whether you require specialized valves or hydraulic configurations, our team can provide tailor-made solutions to ensure optimal performance and safety for your application.
With a focus on reliability, efficiency, and customization, our company is the first choice for businesses in need of rugged, high-performance trailers. These trailers are capable of handling challenging transportation tasks while maintaining safety and operational efficiency. We look forward to adding to your business.

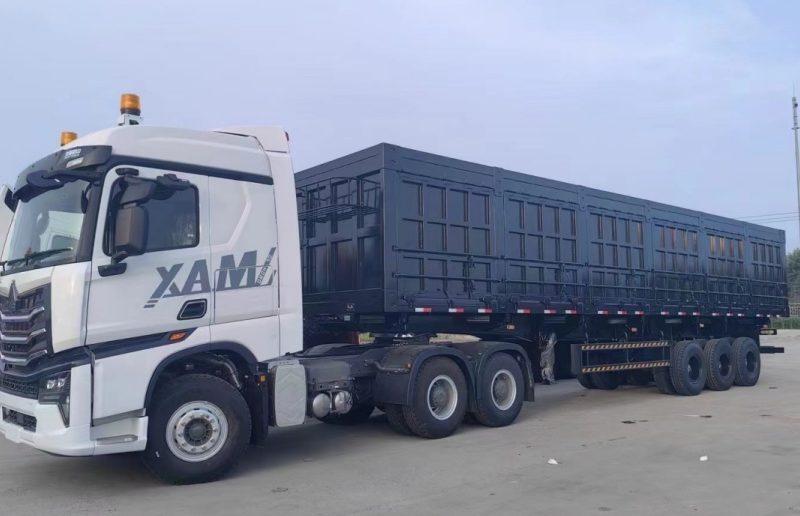

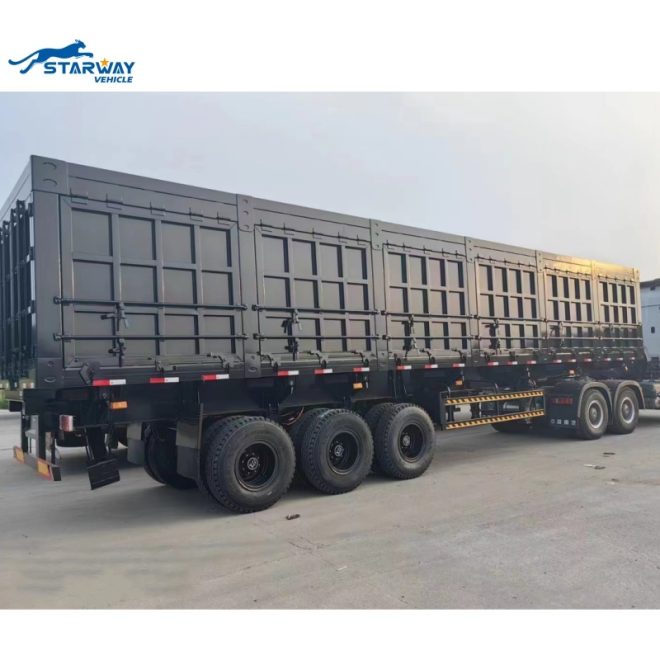

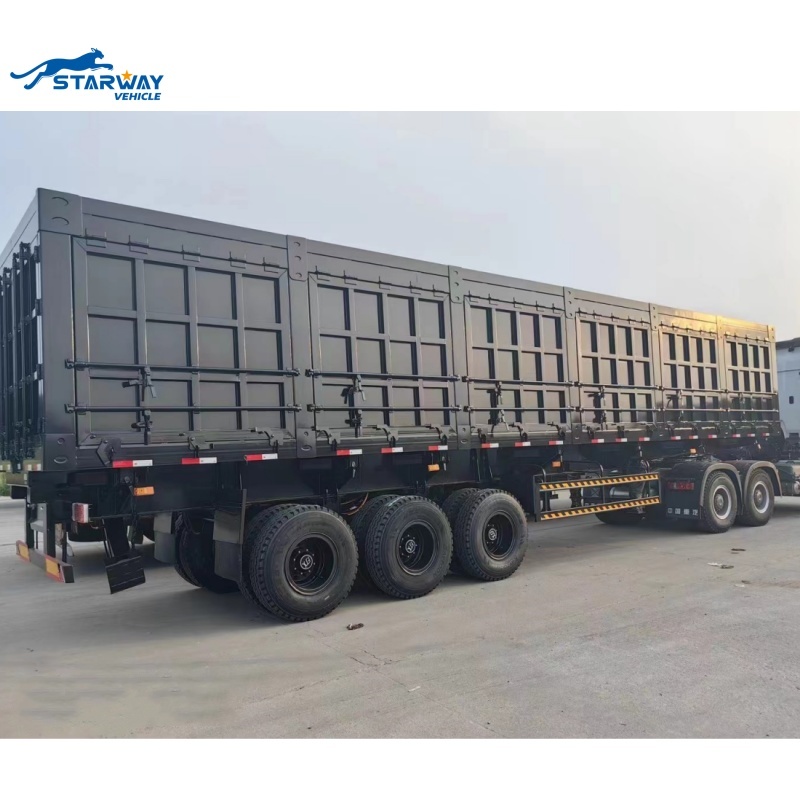

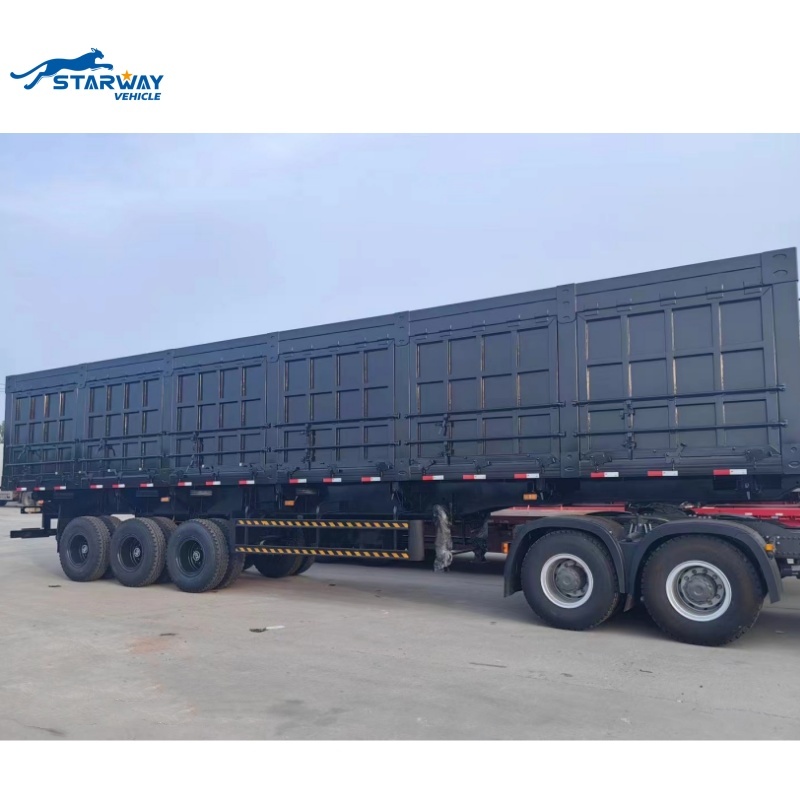

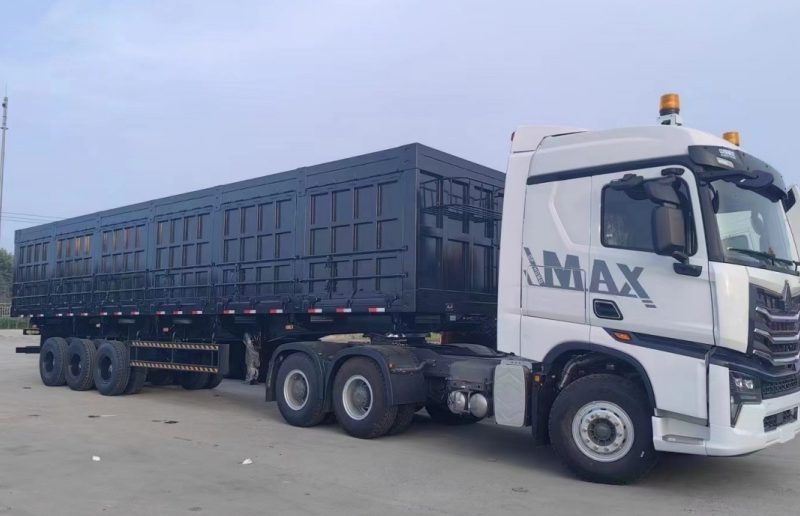

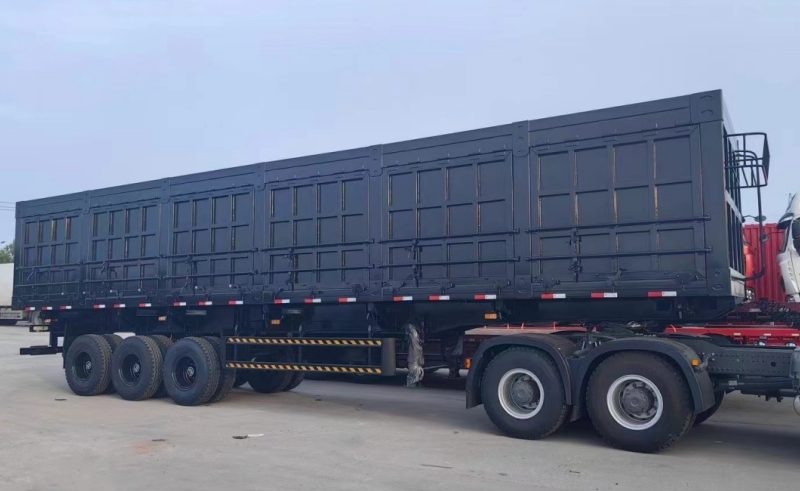

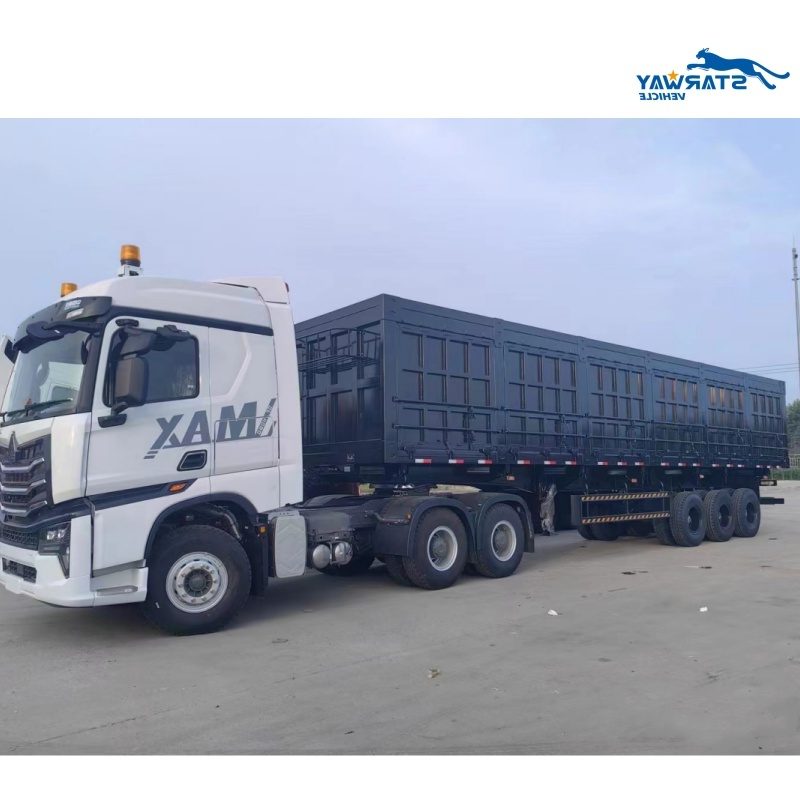

50 Cubic Meters Side Dump Trailer
50 Cubic Meters Side Dump Trailer
The specification of starway vehicle dumper trailer :
|
Brand
|
Starway Vehicle
|
|
Application
|
Coal/Mine/Stand/Stone Loading
|
|
Dump Style
|
Rear Dump
|
|
Loading Capacity
|
30T-100T
|
|
Axle
|
2/3/4*13/16T
FUWA/BPW/STARWAY VEHICLE
|
|
Length
|
11000mm
|
|
Width
|
2500mm
|
|
Height
|
2800mm
|
|
Cylinder
|
HYVA (model is according to the length of cargo box)
|
|
Floor Plate Thickness
|
5mm
|
|
Cargo Thickness
|
4mm
|
|
Cargo Style
|
Rectanglular/Round
|
|
Front Axle Lifting
|
Available
|
|
Main Beam
|
Material Q345/T700
|
|
Height: 500mm
|
|
|
Upper Plate: 14mm
|
|
|
Middle Plate: 8mm
|
|
|
Lower Plate: 16mm
|
|
|
Tire
|
11.00R20/12R222.5*8/12/16 pieces
Linglong/Triangle/Double-Coin/Bridgestone
|
|
Rim
|
8.0/9.0*8/12/16 pieces, steel/aluminum
|
|
Suspension
|
Mechanical/Airbag
|
|
Leaf Spring
|
90mm*13/16mm*10 pieces
|
|
Landing Gear
|
28T two-speed, JOST
|
|
King Pin
|
#50(2″)/#90(3.5″), JOST/Other Brand
|
|
Tool Box
|
Steel/aluminum
|
Here you have the standard specifications for the Starway vehicle. Please contact us if any changes are needed.
