CIMC’s skeletal semi trailers are built to make container transport faster, easier, and more reliable. Whether you’re moving one 40ft container or two 20ft containers, our 40ft trailer handles the job with efficiency and ease—helping you save time and boost productivity.
We use high-strength steel and a solid, reinforced frame to make sure each trailer can handle heavy-duty work and keep going strong. With loading capacities from 30 to 90 tons, these trailers are a great fit for ports, logistics hubs, and long-distance inland transport.
The trailer comes with standard twist locks that work with all major container types, so loading and securing cargo is quick and straightforward. This cuts down on wait times, helps your team move goods faster, and even helps reduce fuel and maintenance costs in the long run.
CIMC also stands behind every trailer we sell. Our after-sales service includes fast support, spare parts when you need them, and on-site help if required. So far, we’ve delivered our skeletal trailers to over 40 countries—including Zambia, Malawi, Tanzania, and Zimbabwe—and the feedback has been great. These trailers are trusted by logistics teams around the world, and we’re proud to be part of their success stories.

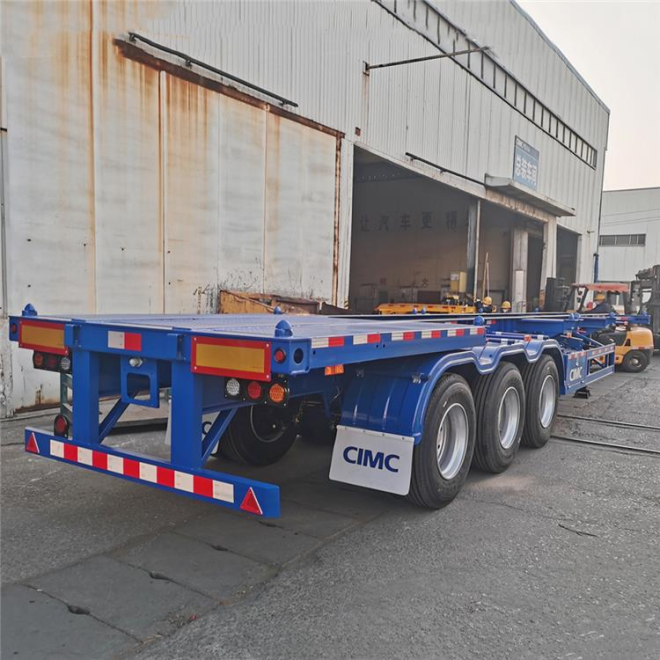

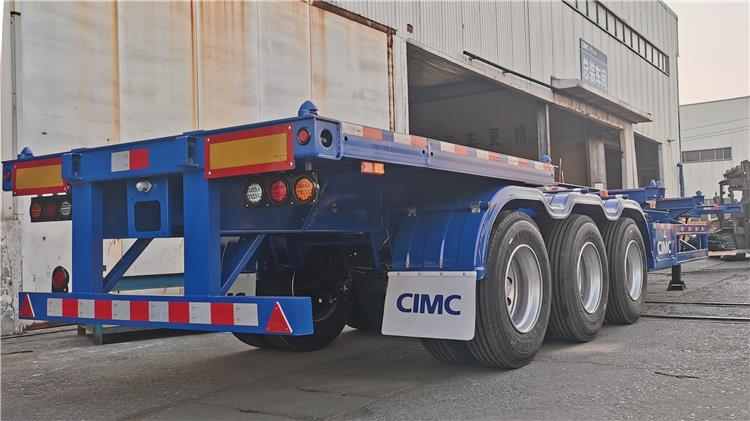

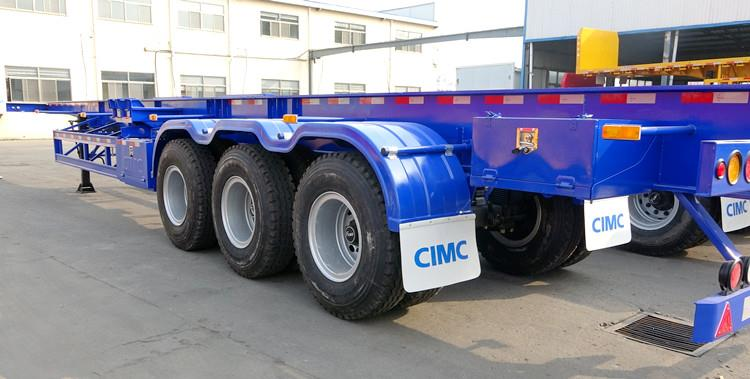

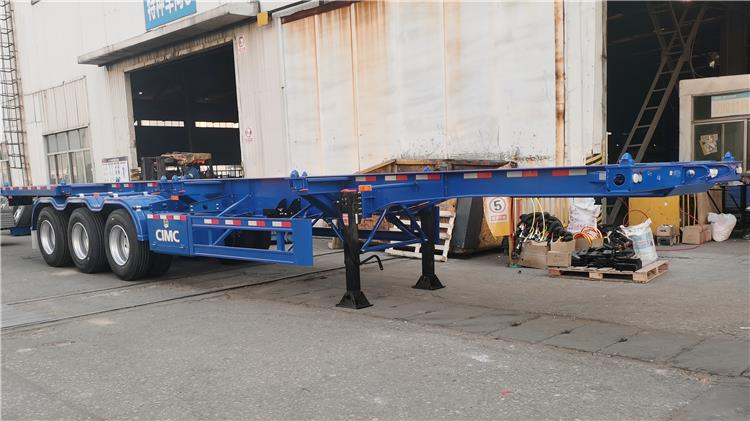

40 ft Container Skeleton Trailer
40 ft Container Skeleton Trailer
The Specification of 40 ft Container Skeleton Trailer
Dimension : 12500*2500*1550mm
Load weight : 40 tons ~70 tons
Axles : 3 Axle 13 tons/16tons (FUWA/BPW/CIMC brand)
Tire : 12R22.5
Landing gear : JOST
Kingpin : 50(2inch)#or 90(3.5inch)# bolted type
Suspension : Mechanical Suspension
Brake system : Wabco
Electric system : 24V / 12V + LED lights
Accessory : spare tire carrier + tool box
