Three-axle low bed semi-trailer, is a semi-trailer specially designed for transporting heavy construction machinery, oversized equipment and other bulky cargo. These trailers feature a low deck height, which enables them to transport tall cargo within the legal height limits of roads and under bridges.

Many transport routes have restrictions on the height or weight of vehicles passing through, particularly when crossing bridges, traveling over overpasses or traveling through urban areas. In these situations, a standard flatbed semi-trailer may not be suitable for the job. Three-axle low-bed semi-trailers are specifically designed to overcome these challenges, providing:
A lower platform suitable for highly constrained infrastructure. Sturdy construction to support the weight of large equipment. Adjustable ramps for easy loading and unloading of vehicles and machinery. These features make lowbed trailers the preferred solution for industries such as construction, mining and energy, where transporting heavy and oversized equipment is a regular requirement.

Key benefits of a 3-axle lowbed :

1、Height: The semi-trailer’s low platform allows it to accommodate tall machinery and equipment without exceeding height restrictions, making it particularly suitable for routes with elevated obstacles such as bridges or tunnels.

2、Stability: The lower center of gravity increases stability during transportation, ensuring safe delivery of heavy and high-value cargo.

3、Strong load capacity: Compared with standard flatbed trailers, low-bed semi-trailers have three axles and can handle heavier loads, making them ideal for transporting large excavators, bulldozers, cranes and other construction equipment.

4、Adaptable: The design accommodates a variety of cargo types, including irregularly shaped or oversized items that cannot be transported on a standard trailer.

The specification of starway vehicle lowbed semi trailer :

Brand : Starway Vehicle

Application : Heavy Duty Loading

Loading Capacity : 30-120 Tons

L*W*H : 13000*3000*1780mm

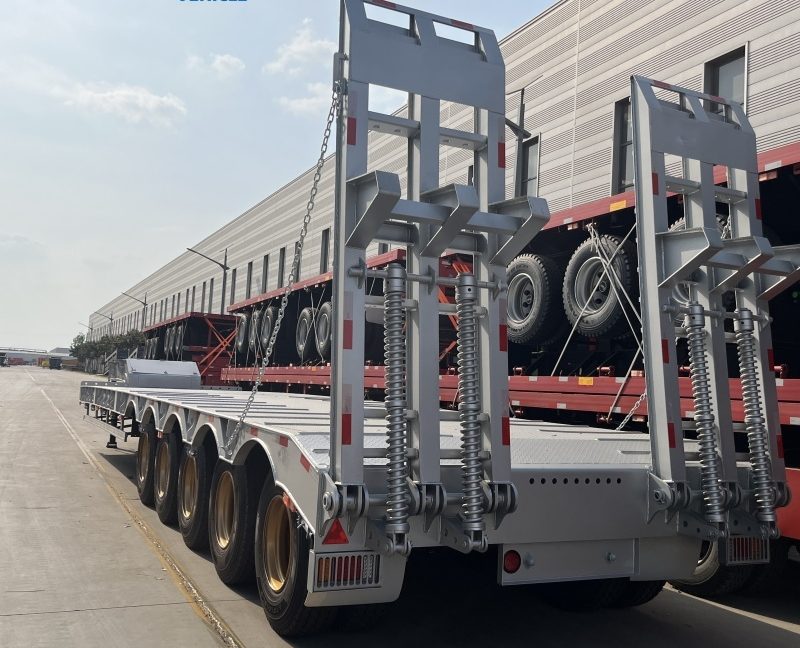

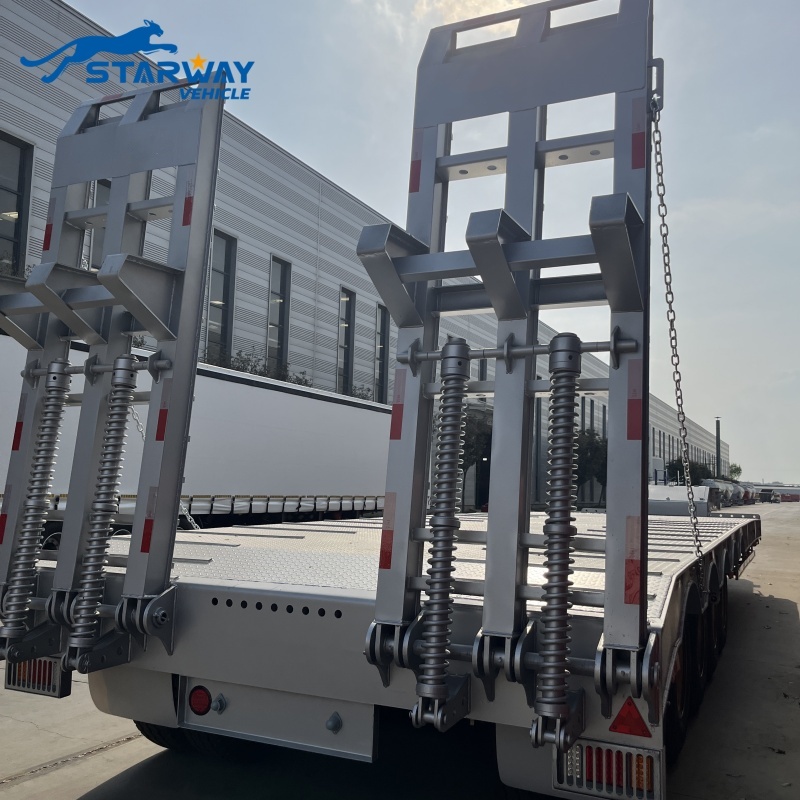

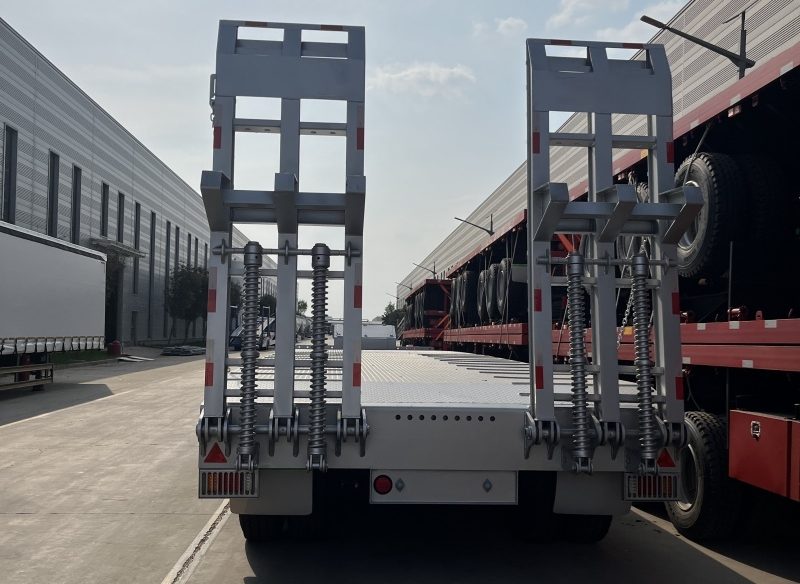

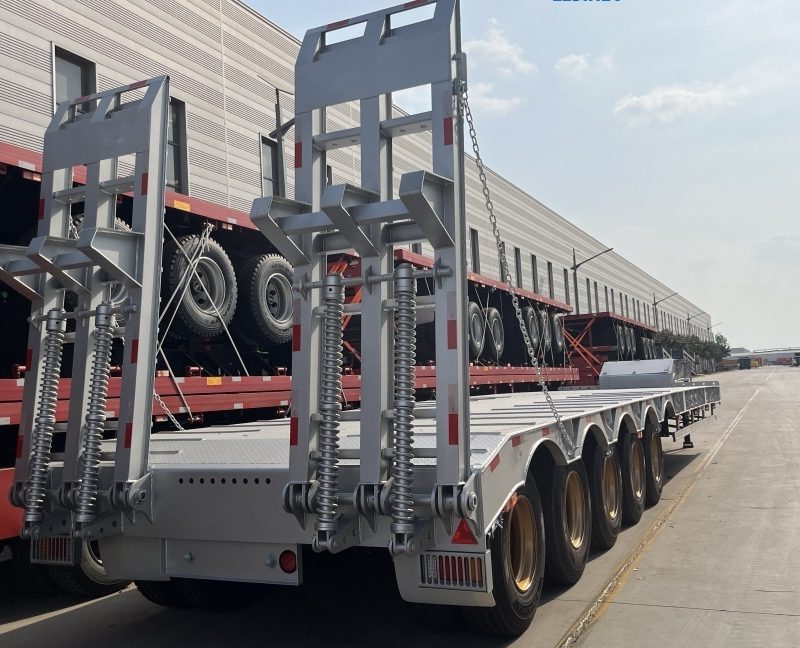

Ladder :Mechanical Spring/Hydraulic

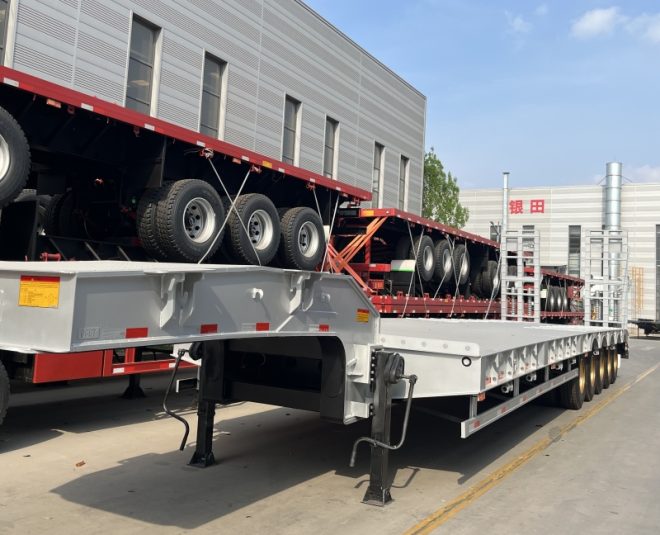

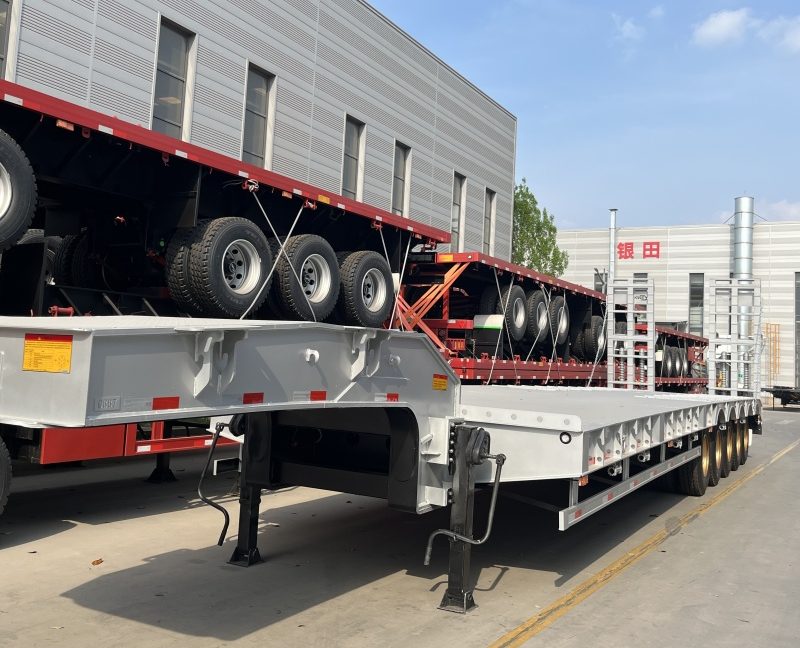

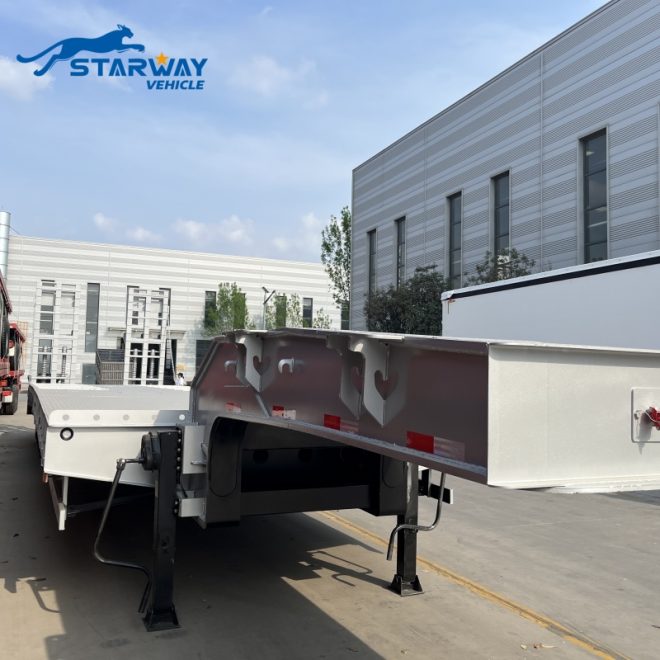

Gooseneck : Available

Tire Style : Covered or Uncovered

Material :Q345/T700

Platform Thickness : 4mm

Axle : 3/4inch*13/16Ton Starway vehicle/BPW/FUWA/Other

Tire ：12R22.5/8.25r20(12/16pcs）Linglong/Triangle/Double-Coin/Bridgestone/Other

Rim : 9.00*22.5/6.5-20(12/16pcs)Steel/Aluminum

Leaf Spring :90mm*13mm*10/90mm*16mm*10pcs

Suspension System : Mechanical/Air Suspension

Ladder :Mechanical Spring/Hydraulic

King Pin :#50 or #90

Landing Gear : 28 Tons Two Speed JOST/Other Brand

Tool Box : Steel/Aluminum

Widened Parts : Available
