40-foot flatbed semi-trailers are an important part of the global supply chain, facilitating the efficient movement of goods between different modes of transportation. These versatile trailers are specifically designed to accommodate standard 40-foot containers, making them indispensable in international freight shipments.
The 40-foot flatbed semi-trailer has a flat, stable platform to simplify the loading and unloading process. A sturdy twist-lock mechanism securely secures the container to the trailer bed, ensuring safe transportation even over challenging terrain and high speeds. This secure fastening system greatly reduces the risk of cargo damage or displacement.
40-foot flatbed semitrailers are available in a variety of configurations to meet specific transportation requirements. Common types include:
2-axle 40-foot flatbed semi-trailer: suitable for shorter hauls and lighter loads.
3-axle 40-foot flatbed semi-trailer: Provides greater payload capacity and better axle weight distribution.
4-axle 40-foot flatbed semi-trailer: Ideal for heavy-duty applications and long-distance hauls.
Additionally, these trailers can be customized with features such as side rails, ramps, and additional twist locks to accommodate different cargo types and transportation scenarios.

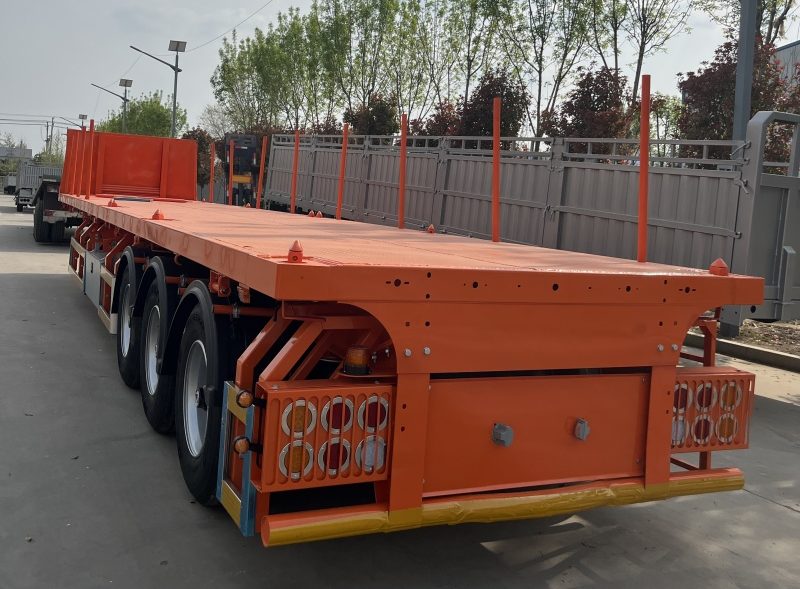

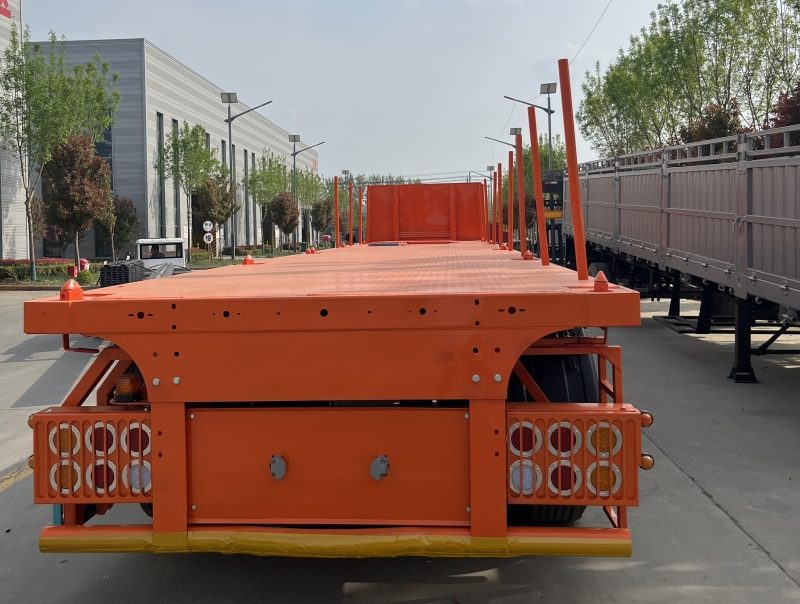

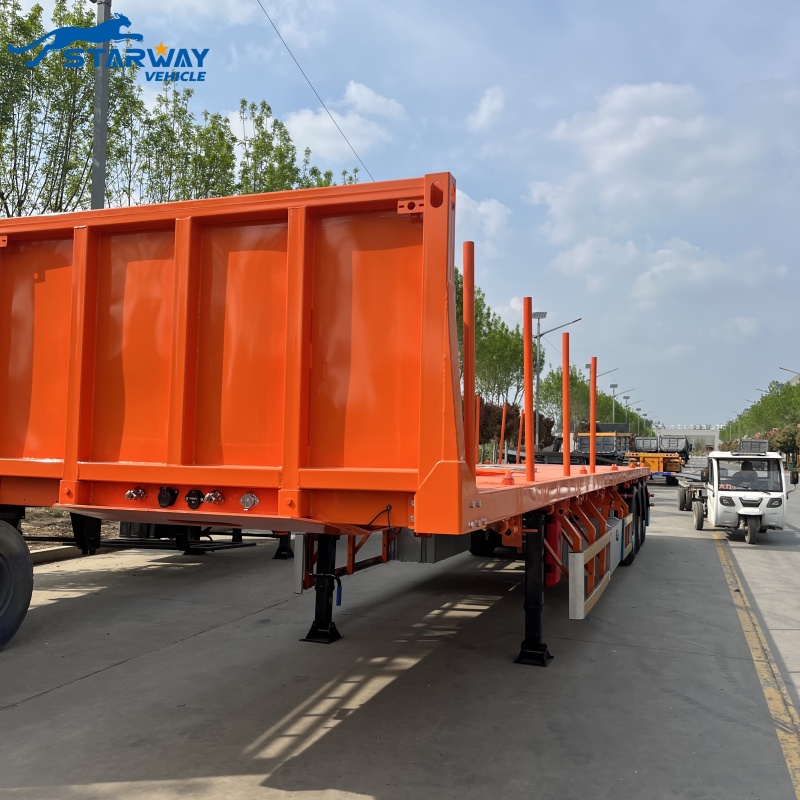

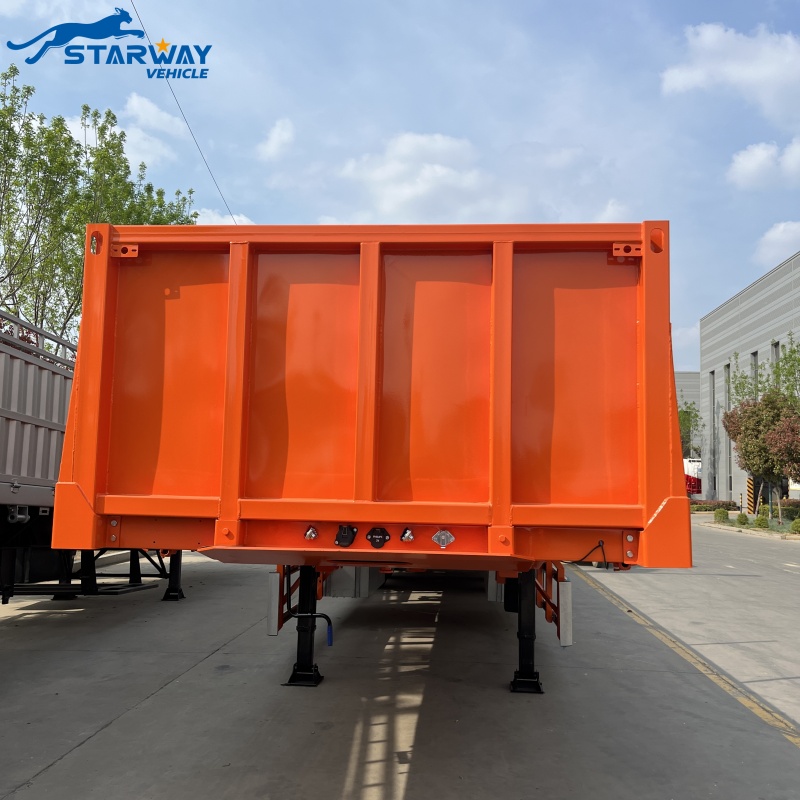

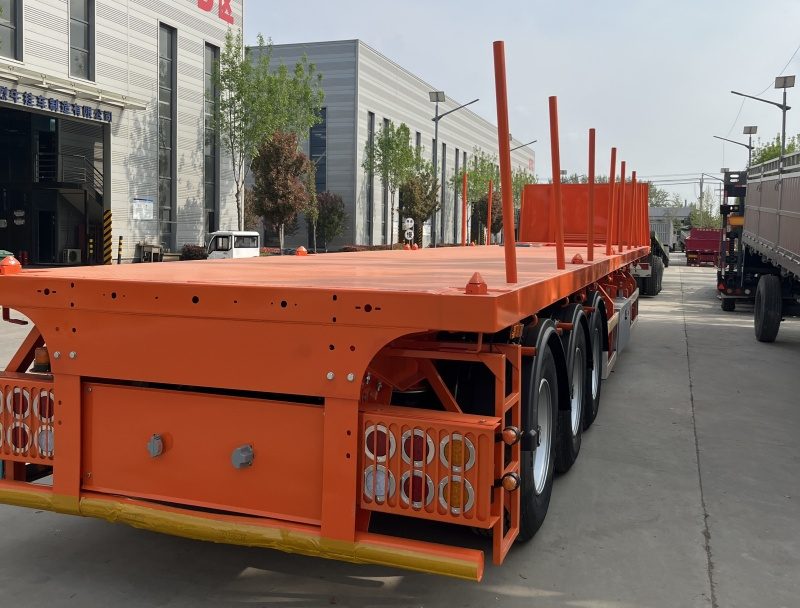

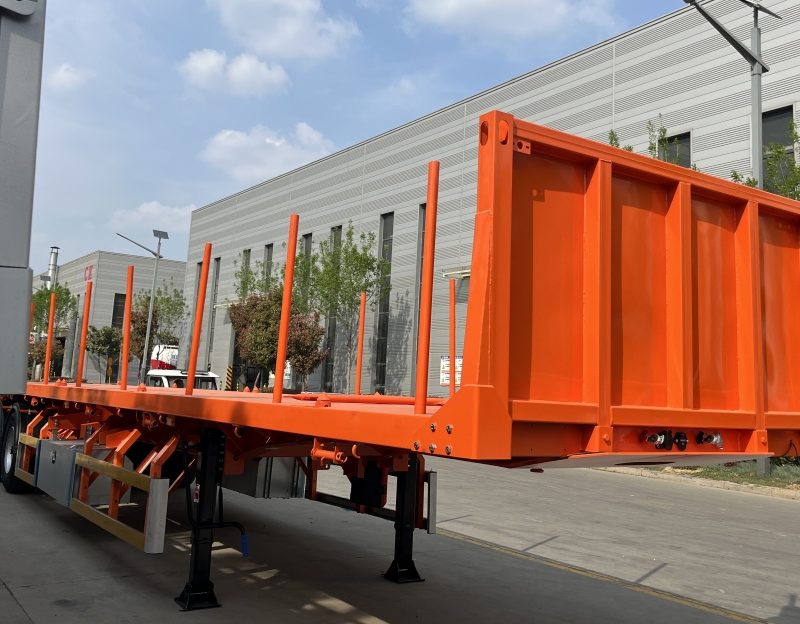

3 Axle 60Tons container Flatbed Trailer
3 Axle 60Tons container Flatbed Trailer
3 Axle 60Tons container Flatbed Trailer
The specification of starway vehicle standard 3axles 40ft flatbed semi trailer :
Dimension :12500x2500x1580mm
Main beam:material Q345B,”H” beam height:500mm ,top/middle /bottom;12/6/14 mm
Side beam :#16 channel steel
Loading capacity :45 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire:12R22.5x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T
Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame
Braking System :Dual line pneumatic brake, SAE hose and connector,without ABS
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
